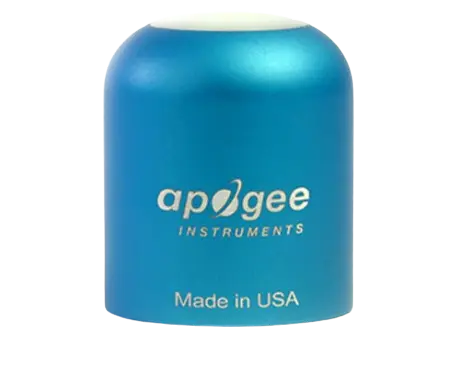

Amplified 0-5 V Full-Spectrum Quantum Sensor - LoRaWAN
Amplified Full-Spectrum Quantum Sensor (0–5 V) + LoRaWAN Converter
Includes 5m Cable (10m Available Upon Request)
Capture accurate real-time light measurements with the Amplified Full-Spectrum Quantum Sensor paired with a LoRaWAN converter for seamless wireless data transmission. Designed for advanced agricultural and environmental monitoring, this solution is ideal for greenhouses, indoor farms, or research facilities needing precision PAR (photosynthetically active radiation) data.
This bundle includes:

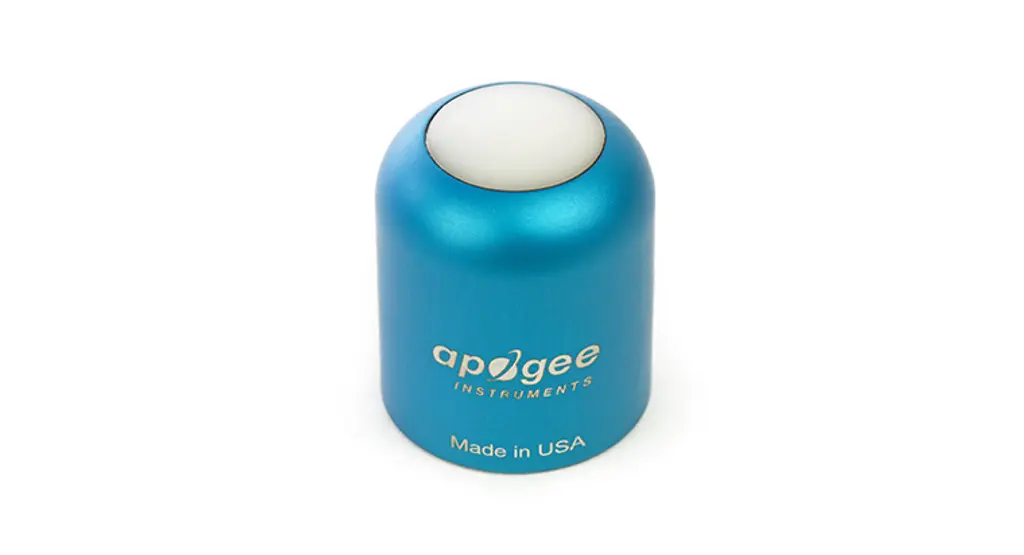

SQ-515 Quantum Sensor with blue-enhanced silicon photodiode

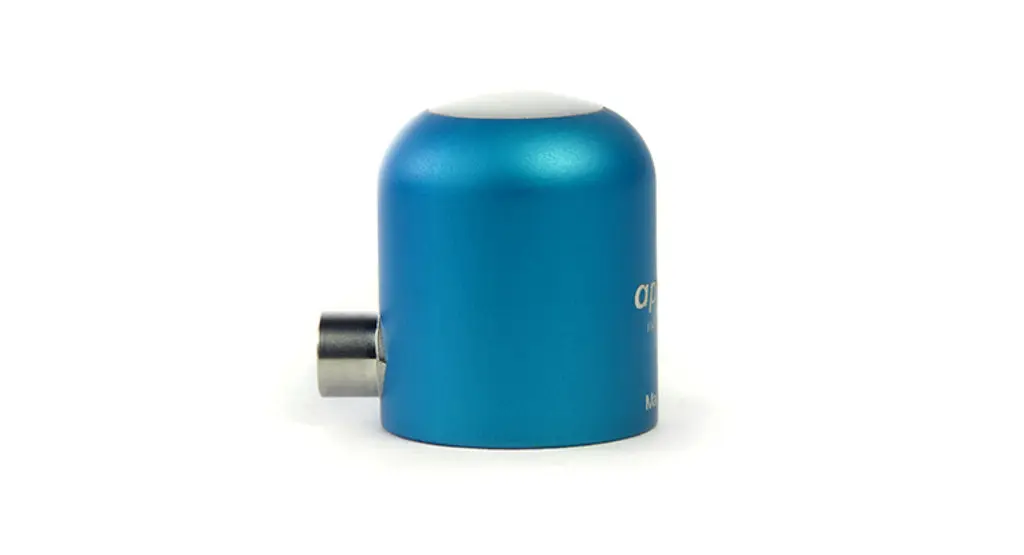

Rugged anodized aluminum housing with self-cleaning acrylic diffuser
0–5 V analog output (1.25 mV per µmol m⁻² s⁻¹ sensitivity)
LoRaWAN converter pre-integrated for wireless communication
Key Features
Accurate, full-spectrum PAR measurement (0 to 4000 µmol m⁻² s⁻¹)
Spectral range: 389–692 nm
Response time: less than 1 ms
Cosine-corrected 180° field of view
Long-term stability: less than 2% drift per year
IP68 rated for harsh environments and full submersion (up to 30 m)
Operating temperature: -40 to 70°C; 0 to 100% relative humidity
Low power consumption (57 µA at 12 V)
Specifications
Dimensions: 30.5 mm diameter × 37 mm height
Weight: 140 g (with 5 m cable)

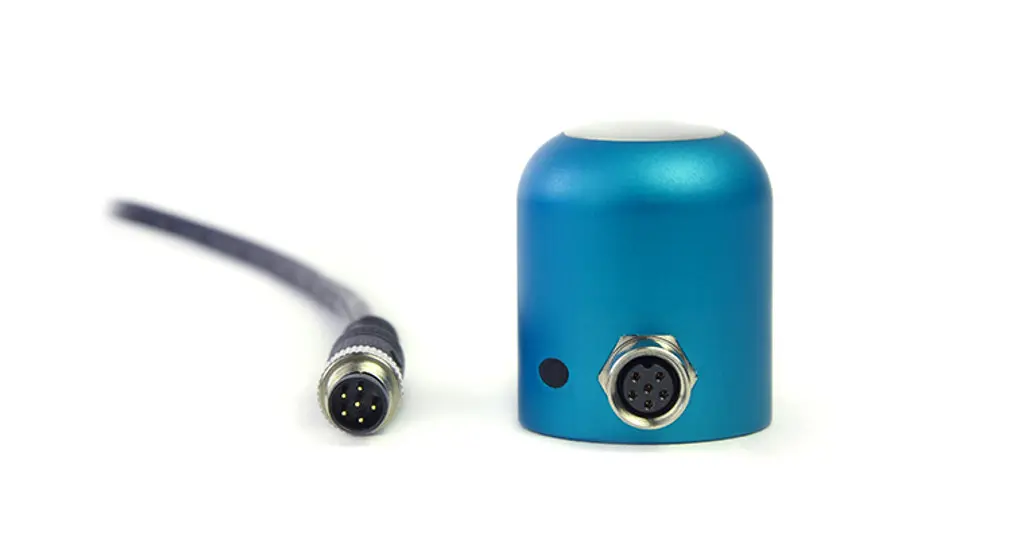

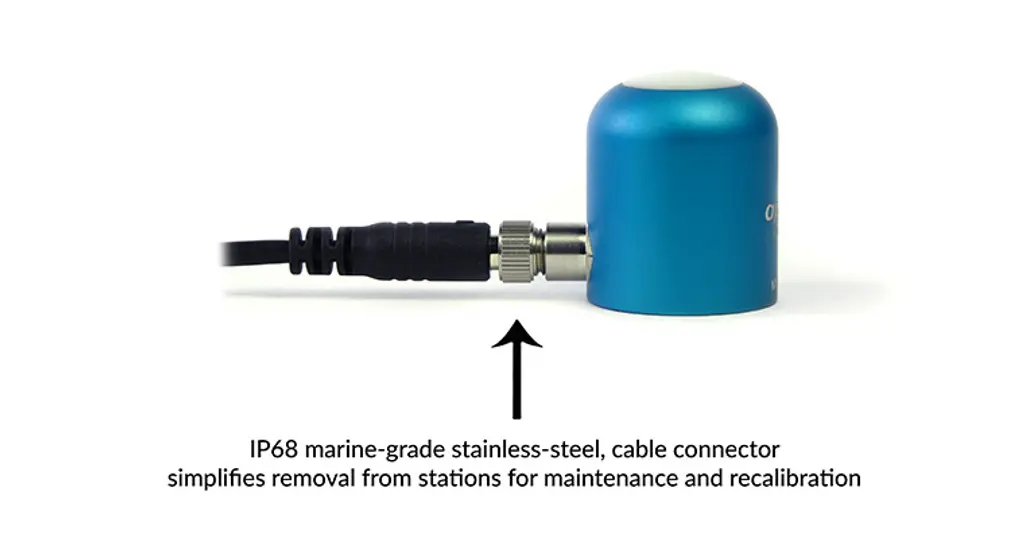

Cable: 5 m, shielded twisted-pair with stainless steel M8 connector
Optional 10 m cable available upon request
Compatible with any controller or data logger accepting 0–5 V input, this sensor and converter kit provides an accurate, rugged, and wireless-ready solution for full-spectrum light monitoring.
