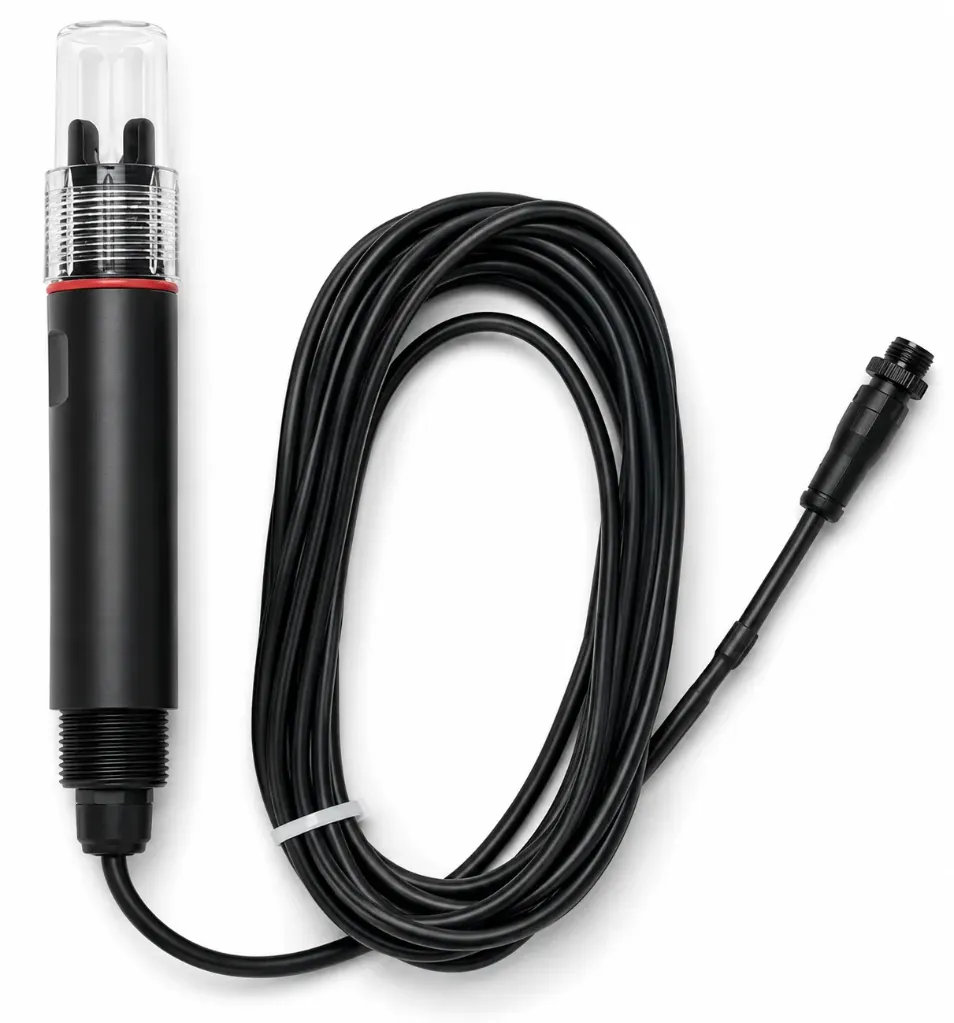

Dragino DR-PH01 Water pH Probe
The Dragino DR-PH01 is an industrial-grade water pH probe designed for continuous monitoring of water acidity and alkalinity across agricultural, industrial, and environmental applications. Featuring a double salt bridge reference electrode, automatic temperature compensation, and an IP68 waterproof construction, the DR-PH01 delivers stable, accurate pH measurements in demanding environments.

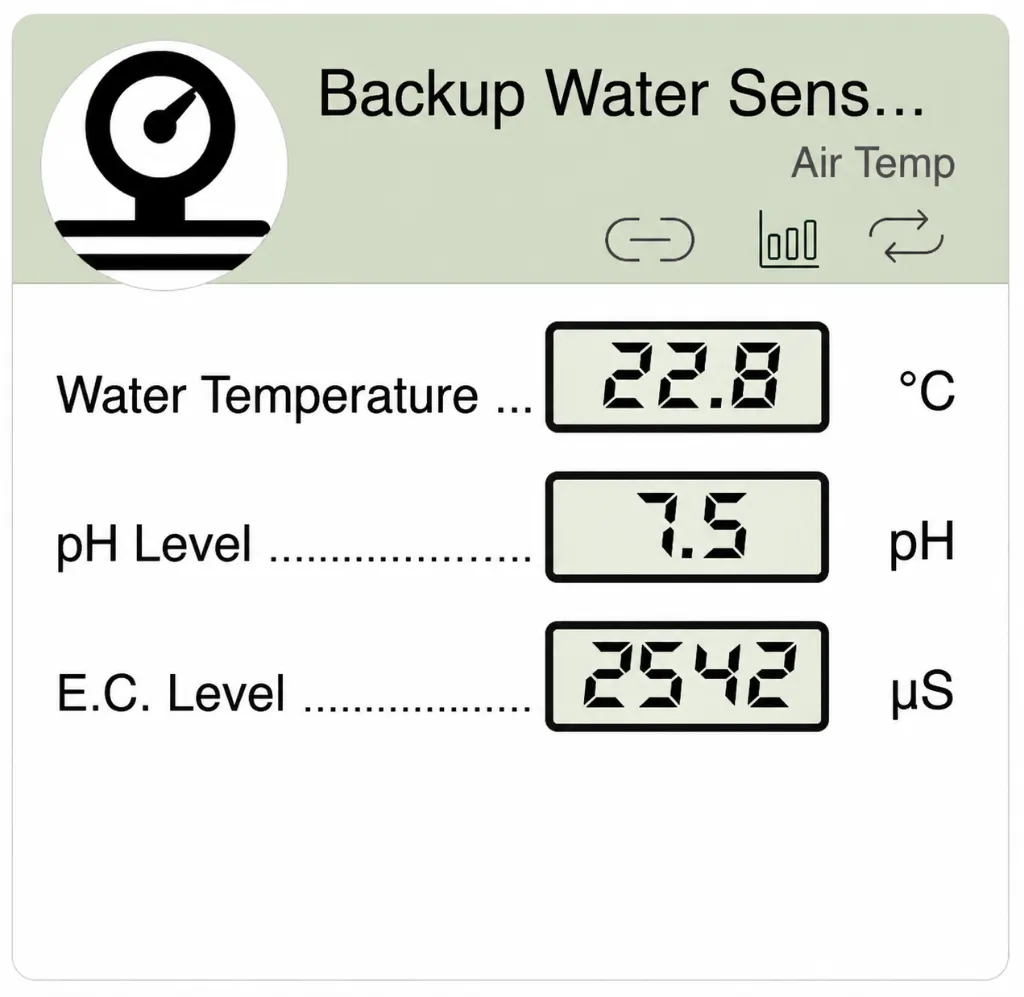

This probe requires the Dragino WQS-LB LoRaWAN® Water Quality Sensor Converter (sold separately), which supports up to three water quality probes—including pH, EC, dissolved oxygen (DO), ORP, and turbidity (TS). Once connected, measurements are transmitted wirelessly via LoRaWAN® and integrate seamlessly with Microclimates EnvOS® for real-time monitoring, historical trending, alerts, dashboards, and automation.
Key Features
-
Industrial-grade water pH measurement
-
Measurement range from 0–14 pH
-
Double salt bridge reference electrode for improved contamination resistance and longer service life
-
Automatic temperature compensation for improved accuracy
-
Integrated temperature measurement
-
RS485 Modbus communication interface
-
IP68 waterproof probe for continuous submersion
-
Corrosion-resistant construction for long-term operation
-
Compatible with the Dragino WQS-LB Water Quality Sensor Converter
-
Native integration with Microclimates EnvOS® for monitoring, alerts, dashboards, and automation
Typical Applications
-
Greenhouse fertigation systems
-
Hydroponic nutrient reservoirs
-
Aquaculture
-
Irrigation water monitoring
-
Industrial process water
-
Wastewater treatment
-
Environmental water monitoring
-
Surface water monitoring
-
Water treatment facilities
Specifications
-
pH Range: 0–14.00 pH
-
Resolution: 0.01 pH
-
Accuracy: ±0.15 pH
-
Repeatability: ±0.02 pH
-
Temperature Range: 0°C to +60°C
-
Temperature Resolution: 0.1°C
-
Temperature Accuracy: ±0.5°C
-
Communication: RS485 (9600 baud)
-
Power Supply: 7–30 VDC
-
Power Consumption: ≤0.5 W
-
Automatic Temperature Compensation: Yes
-
Ingress Protection: IP68
-
Pressure Resistance: 0.6 MPa
-
Cable Length: 5 m
-
Compatibility: Dragino WQS-LB Water Quality Sensor Converter (required)
