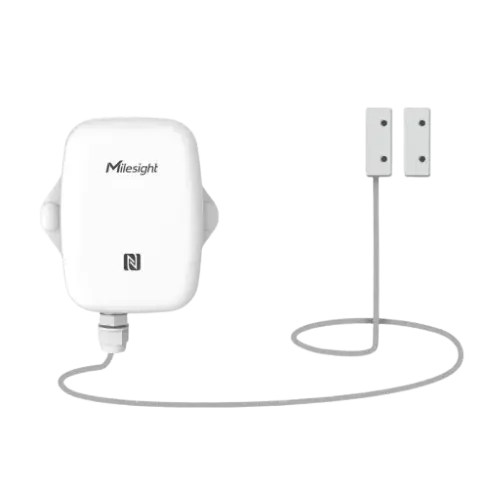

EM300-MCS Magnetic Contact Switch

The EM300-MCS magnetic contact switch is a LoRaWAN®-enabled door and window sensor designed for intrusion detection and access monitoring in smart buildings, agriculture facilities, warehouses, and remote infrastructure sites. Integrated with Microclimates EnvOS®, it provides real-time open/close status updates, security alerts, event logging, and historical reporting for physical access points. With ultra-low power operation and rugged IP67 construction, it is built for long-term, maintenance-free deployment in demanding environments.

Features

• LoRaWAN® Class A communication (OTAA/ABP support)

• Multi-band support: CN470, RU864, IN865, EU868, US915, AU915, KR920, AS923

• Magnetic contact detection for door/window open or close events

• Normally closed sensing design with 20–30 mm trigger distance

• Integrated temperature monitoring (-30°C to 70°C, ±0.3°C accuracy)

• Integrated humidity monitoring (0–100% RH, ±3% typical accuracy)

• Low-power design with long battery life (≥5 years typical use)

• Powered by ER18505 Li-SOCl₂ battery (4000 mAh standard, 8000 mAh optional)

• IP67-rated enclosure for indoor and outdoor installations

• Wall-mountable using screws or 3M adhesive

• Compact form factor for doors, windows, and enclosure monitoring

• Seamless integration with Microclimates EnvOS® for security monitoring, alerts, and event tracking
