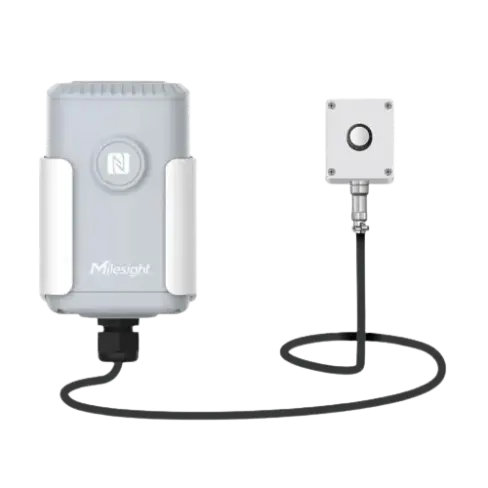

EM500-LGT LoRaWAN Light Sensor
Features
- Wide measuring range and high precision
- Ultra-wide-distance transmission up to line of sight of 10km
- IP67 waterproof enclosure for harsh environment applications
- Built-in 19000 mAh replaceable battery and work for 10 years without replacement
- Equipped with NFC for easy configuration
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Specifications
Wireless Transmission
Technology: LoRaWAN
Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power: 16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity: -137dBm @300bps
Mode: OTAA/ABP Class A
Measurement
Range: 0 – 100000 lux
Accuracy: ±3%
Resolution: 1 lux
Operation
Power On & Off: NFC, Power Button (Internal)
Configuration: Mobile APP(via NFC) or PC software(via USB Type-C)
Physical Characteristics
Cable Length: 3 m
Power Supply: 19000 mAh Li-SOCL2 battery (ER34615)
Battery Life(Tested under laboratory conditions and for guideline purposes only): 10 years (10 min interval)
Operating Temperature: -30°C to +60°C
Relative Humidity: 0% to 100% (non-condensing)
Ingress Protection: IP67(Transceiver)/IP65(Light Sensor)
Dimension
Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in)
Light Sensor: 64 × 58 × 34 mm (2.5 × 2.3 × 1.3 in)

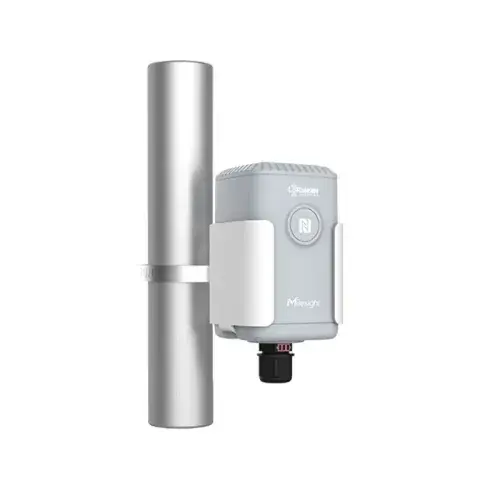

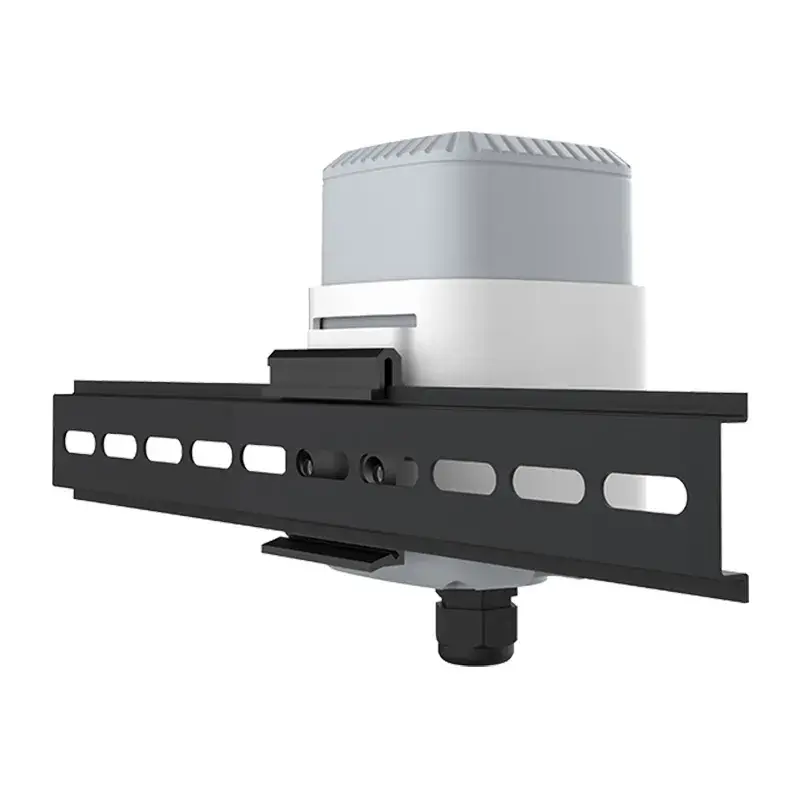

Installation: Pole, wall or DIN Rail Mounting
Approvals
Regulatory: CE, FCC, RoHS
