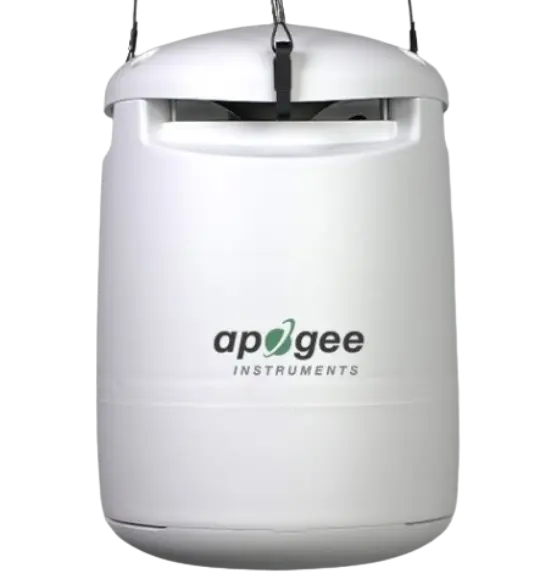

Full-Spectrum Guardian CEA Multi-Sensor Monitor
This multi-parameter environmental datalogger is a high-performance sensor system designed for comprehensive greenhouse, controlled-environment agriculture, and ecological research applications. Integrated with Microclimates EnvOS®, it enables real-time monitoring, advanced analytics, alerts, and historical reporting across multiple climate and plant-growth variables including light intensity, CO₂ concentration, temperature, humidity, vapor pressure deficit, dew point, and barometric pressure. With high-speed optical and gas sensing capabilities, it is optimized for precision crop optimization and environmental research.
Features
Integrated multi-sensor platform measuring PAR, air temperature, humidity, CO₂, barometric pressure, VPD, dew point, DLI, and photoperiod
PAR measurement range: 0 to 4000 µmol m⁻² s⁻¹ with 389–692 nm spectral response
High accuracy CO₂ sensing (0–2000 ppm range, ±50 ppm + 2% typical accuracy)
Humidity measurement range: 0–95% RH (±3% typical accuracy in 20–80% range)
Vapor Pressure Deficit accuracy: ±0.08 kPa (at 25°C)
Barometric pressure range: 70–110 kPa
Ultra-fast response time (<1 ms) for light measurement
Wide operating environment: -40°C to 60°C, 0–95% RH
Modbus connectivity (RS232 and RS485) plus Bluetooth configuration support
Data logging capacity up to 9 months at 1-minute intervals
Power input: 5–32 V DC (typical 100 mA, peak 500 mA)
IP53-rated enclosure for harsh environmental operation
Compact cylindrical design: 105 mm diameter × 157 mm height, 392 g mass

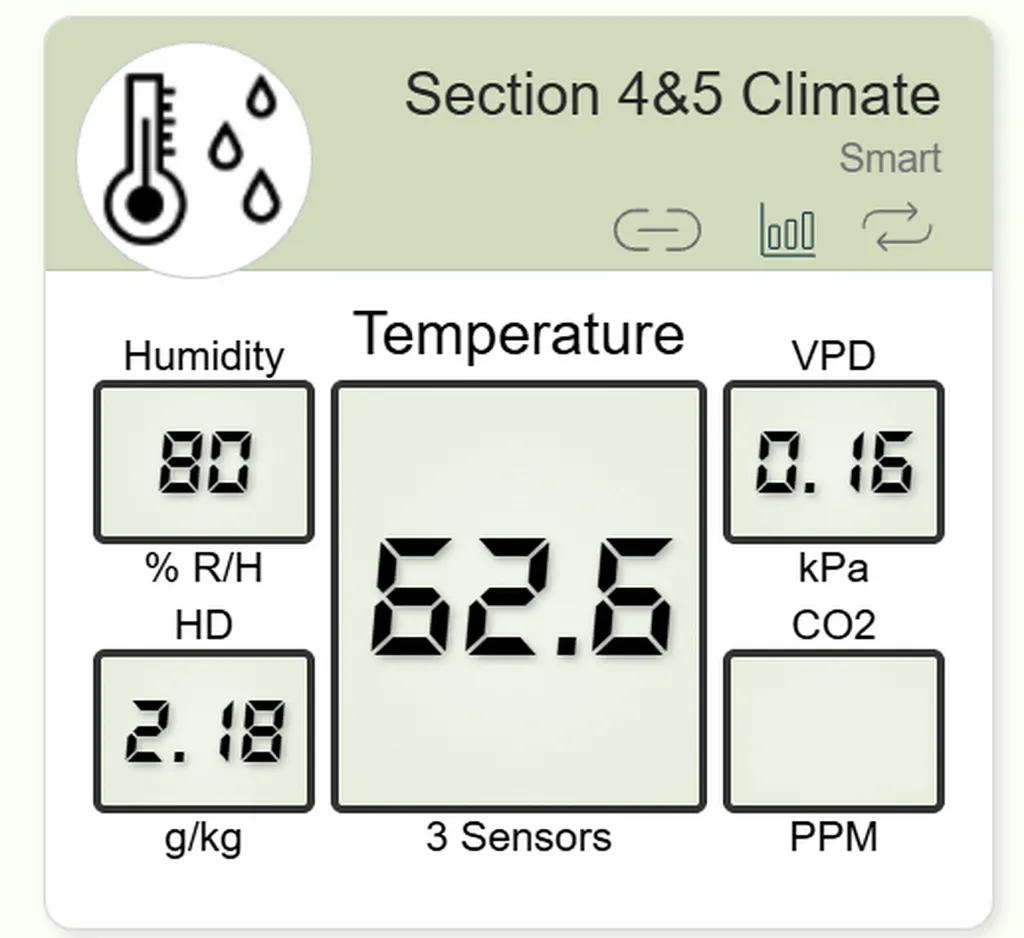

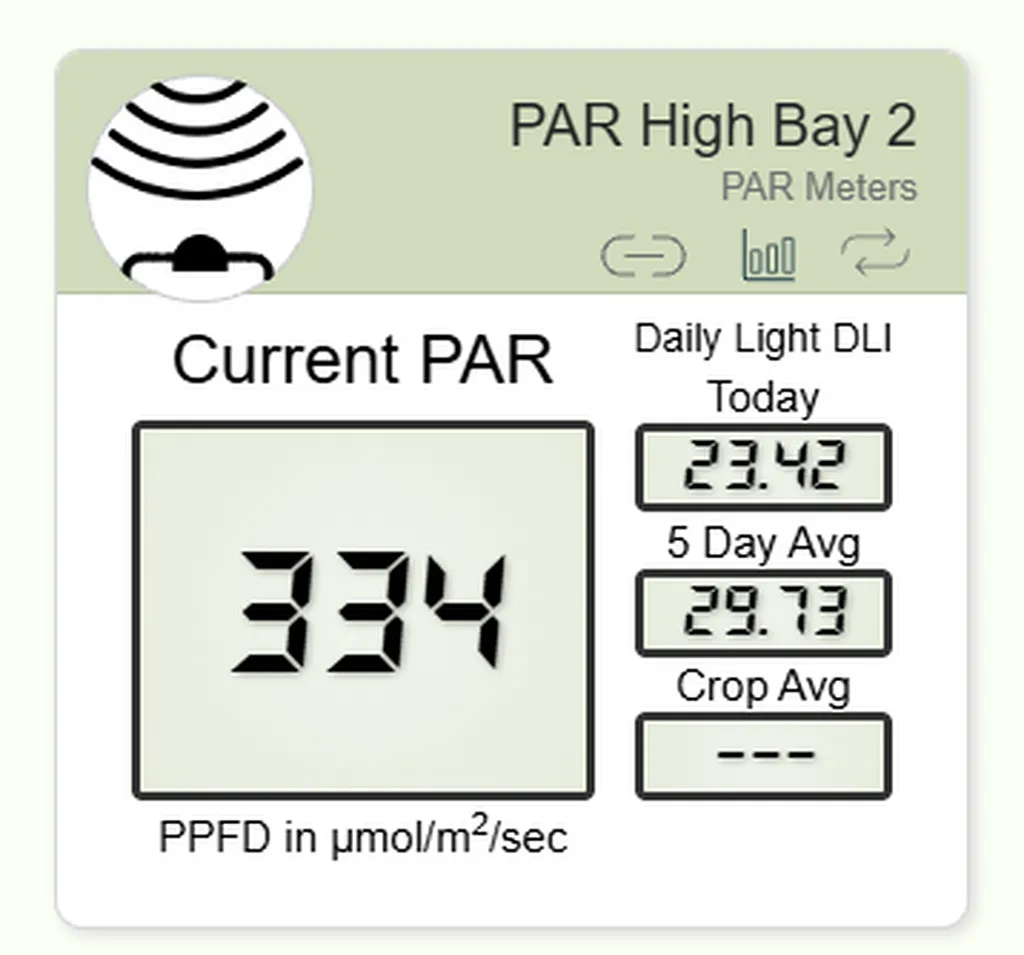

Seamless integration with Microclimates EnvOS® for monitoring, analytics, alerts, and environmental optimization
