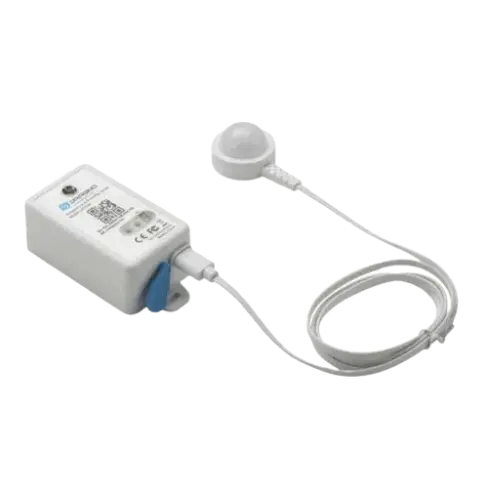

The Dragino LHT65N-PIR is a long-range LoRaWAN® environmental sensor that combines temperature, humidity, and passive infrared (PIR) motion detection into a single battery-powered device. Designed for smart buildings, greenhouses, warehouses, laboratories, and industrial facilities, it provides reliable environmental monitoring while detecting human activity through an external PIR sensor.
With a built-in high-accuracy temperature and humidity sensor and an external 1-meter PIR probe, the LHT65N-PIR can monitor environmental conditions while detecting occupancy or movement within a 0–3 meter range. Its low-power LoRaWAN® design enables multi-year battery life, making it ideal for installations where power is unavailable.

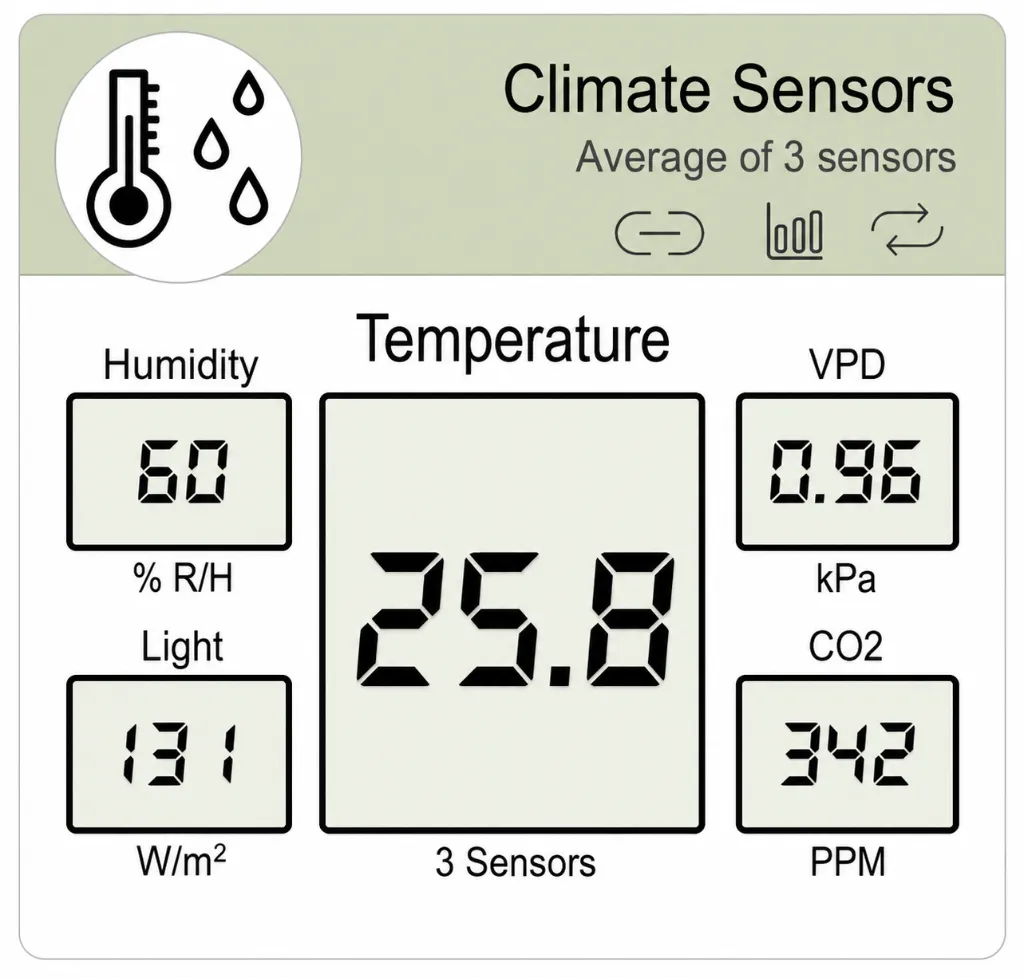

When integrated with Microclimates EnvOS®, the LHT65N-PIR provides real-time environmental monitoring, occupancy detection, historical trending, alerts, dashboards, and automation. Trigger lighting, HVAC, ventilation, security notifications, or greenhouse workflows based on both environmental conditions and human presence.
Key Features
-
LoRaWAN® v1.0.3 Class A wireless communication
-
Built-in high-accuracy temperature and humidity sensor
-
External PIR motion sensor with 1-meter cable
-
Detects human activity up to 3 meters
-
Up to 5 years of battery life
-
Remote configuration via LoRaWAN downlink
-
Wireless OTA firmware updates
-
Tri-color LED status indicator
-
Built-in 2400 mAh battery
-
Native integration with Microclimates EnvOS® for monitoring, alerts, dashboards, and automation
Typical Applications
-
Greenhouse occupancy monitoring
-
Building automation
-
HVAC control
-
Security and intrusion detection
-
Laboratories
-
Equipment rooms
-
Warehouses
-
Smart offices
-
Environmental monitoring with occupancy awareness
-
Remote IoT monitoring
Specifications
-
Wireless: LoRaWAN® v1.0.3 Class A (US915)
-
Temperature Range: -40°C to +85°C
-
Temperature Accuracy: ±0.3°C (typ.)
-
Temperature Resolution: 0.01°C
-
Humidity Range: 0–96% RH
-
Humidity Accuracy: ±3% RH (typ.)
-
Humidity Resolution: 0.04% RH
-
PIR Detection Distance: 0–3 m
-
PIR Cable Length: 1 m
-
Battery: 2400 mAh lithium (non-rechargeable)
-
Battery Life: Up to 5 years (typical)
-
Configuration: AT Commands, LoRaWAN Downlink
-
Firmware Updates: OTA supported
