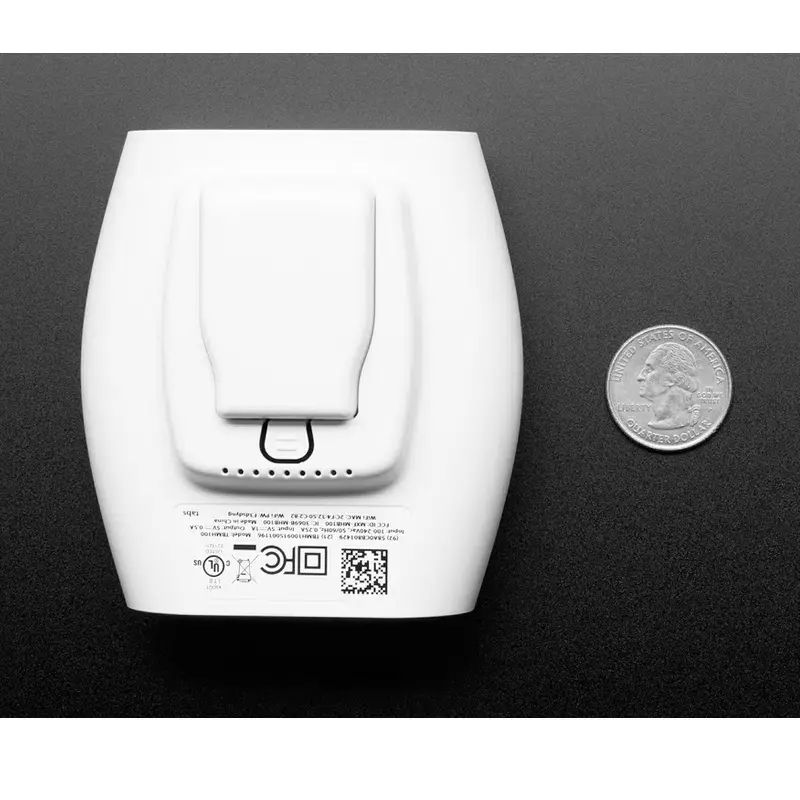

LoRaWAN Gateway Browan Minihub Pro
The Minihub Pro is a LoRaWAN Minihub Gateway designed to enable connection to the AWS IoT Core. It is also a low-cost LoRaWAN-compliant gateway utilizing a WiFi backhaul. It is a wall-plug type with interchanged plug options. The gateway also includes a USB-C charging port that makes it ideal for mobile applications or to enlarge signal coverage.
Features
- EU, US band supported
- LoRaWAN 1.0.3
- WiFi backhaul

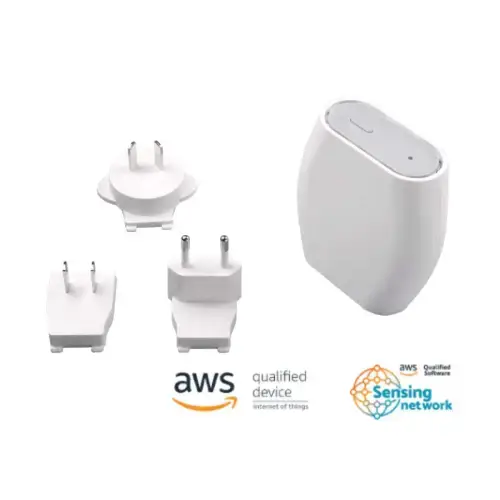

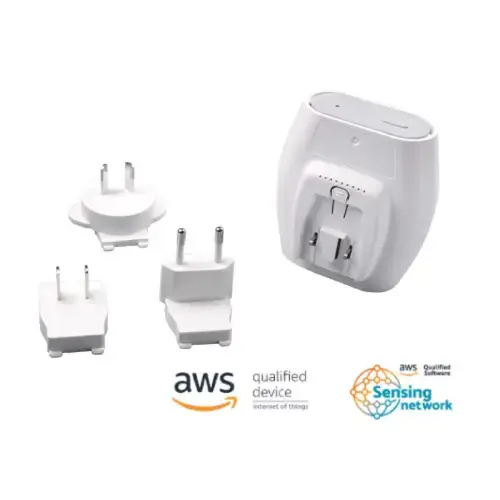

- Wall-type plug with multiple plug options
- Power input: Wall plug type / USB type C port
- 802.11 b/g/n, Client Mode
- Cost-effective
- Quick set-up
- Compact design for mobile application
- Built-in LoRa & WiFi antenna
- ESP32-D0WD by Espressif Systems
- FreeRTOS support with AWS Qualification
Specifications
LoRa
Chipset
- Semtech SX1308 / SX1302
Channels
- 8 Channels
Receive Sensitivity
- -140 dBm
WiFi
Mode
- 802.11 b/g/n, Client Mode
Tx Power
- +20 dBm
Frequency Band
- 2.4 GHz
WAN/LAN ports
- Not Available
USB Port
- USB Type-C (900mA)
Security
- WPA/WPA2
Operating Temperature
- 0-40°C
Weight
- 200g
Dimensions
- 90x80x40mm
Type Approval
- CE/FCC/IC/RCM/WPC/RoHS (Pending)
