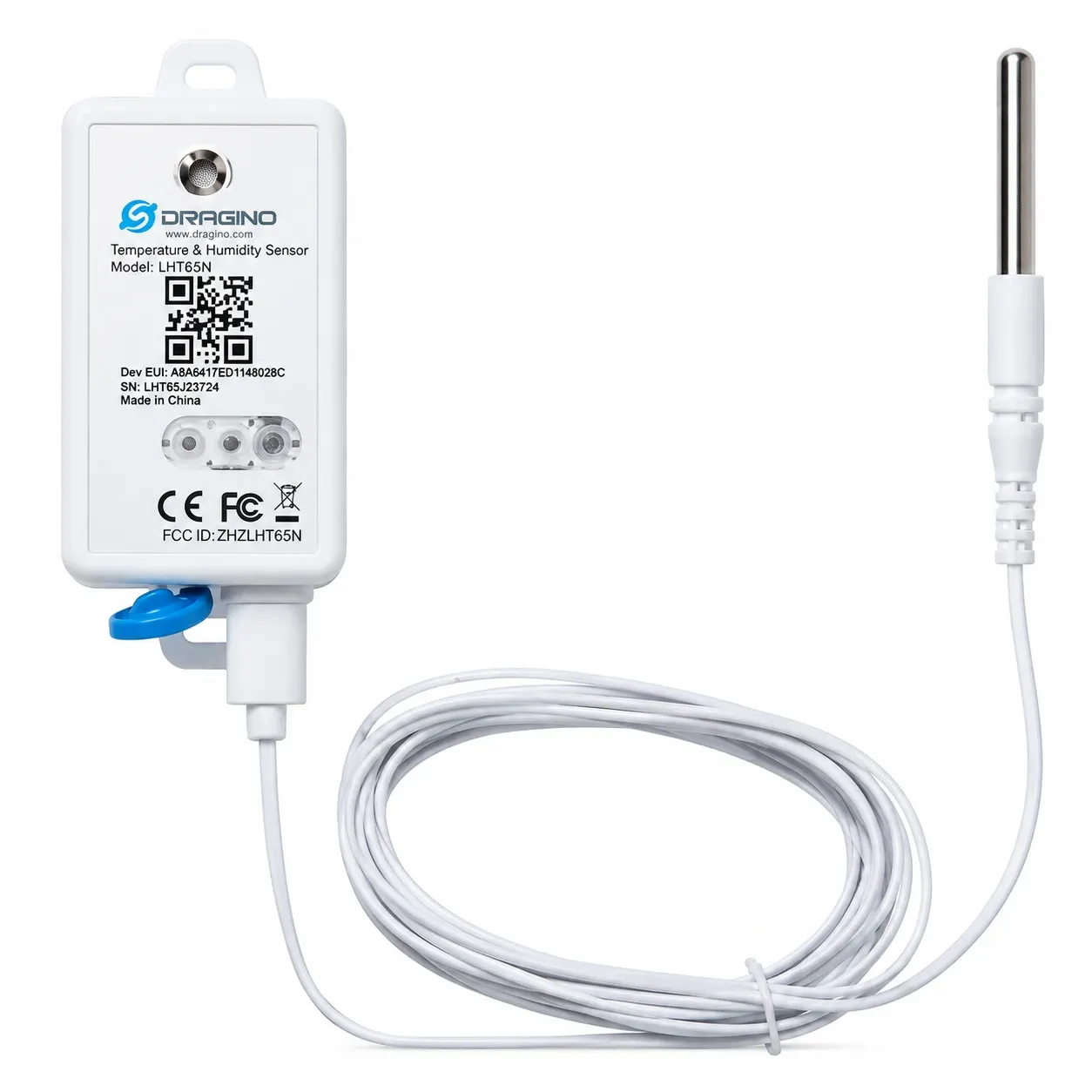

- Dragino LHT65N/S-NIS LoRaWAN® NIST-Traceable Temperature Sensor
- The Dragino LHT65N/S-NIS is a long-range wireless temperature monitoring sensor designed for applications requiring traceable temperature measurements and reliable environmental data.
- The sensor features an external NIST-traceable temperature probe with a unique calibration certificate, along with built-in temperature and relative humidity sensing. LoRaWAN® connectivity enables long-range, low-power wireless monitoring, making the LHT65N/S-NIS well suited for cold storage, food and agricultural environments, research facilities, controlled environments, and other temperature-sensitive applications.
- Built-in datalogging helps maintain data continuity during temporary network interruptions by storing readings locally for later retrieval. A 2400 mAh battery provides long-term operation of up to 10 years depending on reporting frequency and operating conditions.
Key Features

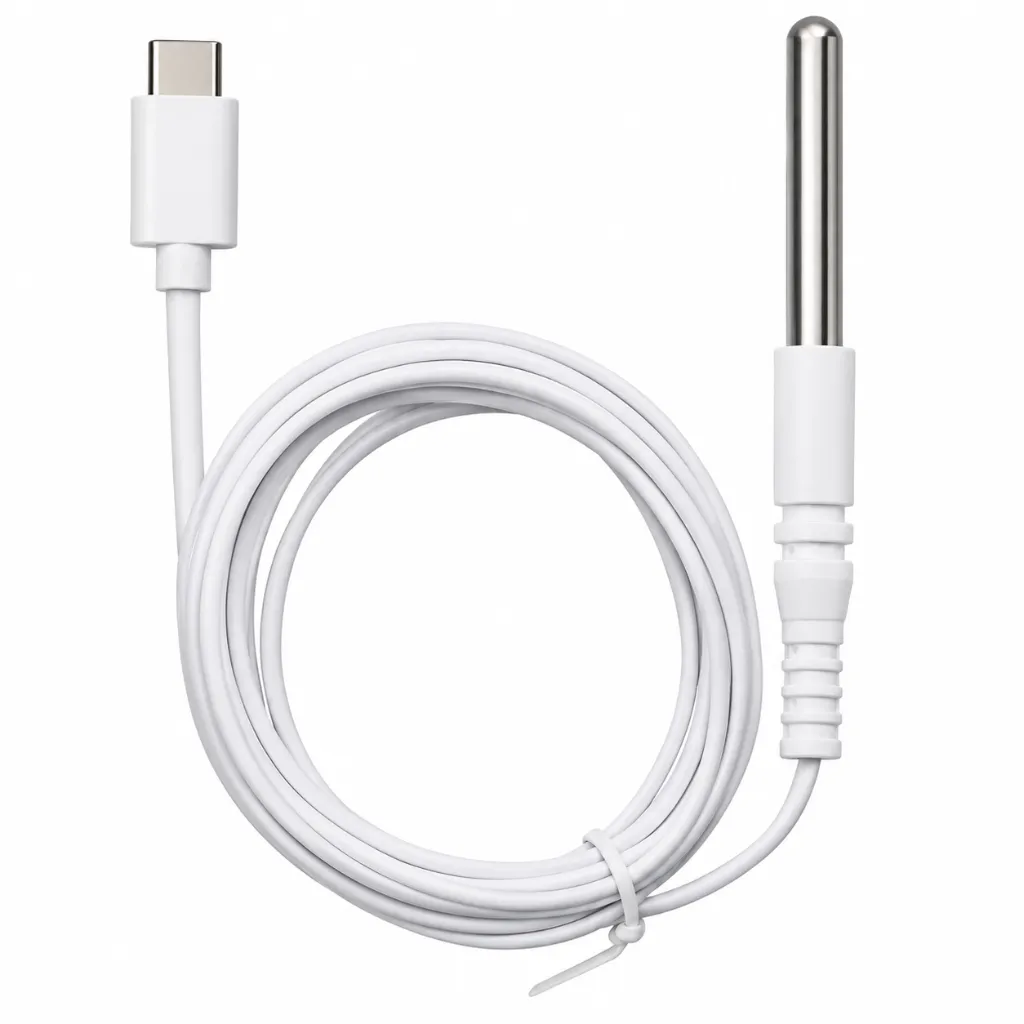

External NIST-traceable temperature probe
Unique NIST traceability certificate
Built-in temperature and relative humidity sensor
Long-range LoRaWAN® Class A wireless communication
Built-in datalogging during network interruptions
Remote parameter configuration via LoRaWAN® downlink
Tri-color status LED
Firmware upgrade capability
2400 mAh battery with up to 10-year battery life*
Compatible with standard LoRaWAN® gateways
Built-In Environmental Sensor
Temperature range: -40°C to +80°C
Temperature resolution: 0.01°C
Typical temperature accuracy: ±0.3°C
Relative humidity range: 0–96% RH
Typical humidity accuracy: ±3% RH
*Actual battery life depends on reporting interval, environmental conditions, and network configuration.
