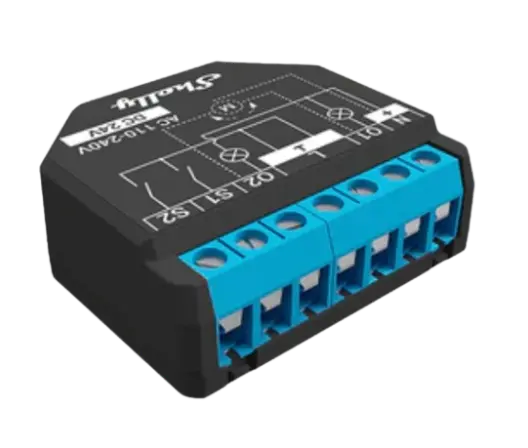

Shelly Plus 2PM UL – Dual-Channel Wi-Fi Relay with Power Monitoring
The Shelly Plus 2PM UL is a compact, UL-certified, dual-channel Wi-Fi relay designed for equipment control, automation, and real-time power monitoring.
Two independently controlled relay outputs allow a single device to switch and monitor two AC loads. Each channel includes integrated power measurement, providing visibility into equipment operation and energy consumption.
With support for Wi-Fi, Bluetooth, MQTT, webhooks, scripting, and an embedded web interface, the Shelly Plus 2PM UL can be integrated into environmental monitoring and automation systems for remote equipment control, scheduling, energy tracking, and automated operation.
The compact form factor allows installation in control panels, electrical boxes, or other space-constrained applications.
Key Features
2 independently controlled relay outputs
Integrated power monitoring for each channel
120 VAC, 50/60 Hz operation
Up to 8 A per channel / 16 A total
Wi-Fi and Bluetooth connectivity
MQTT support
Embedded web interface
Local scripting and automation
Configurable schedules and webhooks
Overcurrent, overpower, overvoltage, and overheating protection
Supports resistive, capacitive, and compatible inductive loads
Compact 37 × 42 × 16 mm form factor
UL-certified
Applications
Fans • Pumps • Lighting • Heating equipment • Motors • Environmental equipment • Energy monitoring • Equipment scheduling • Remote ON/OFF control • Environmental automation
