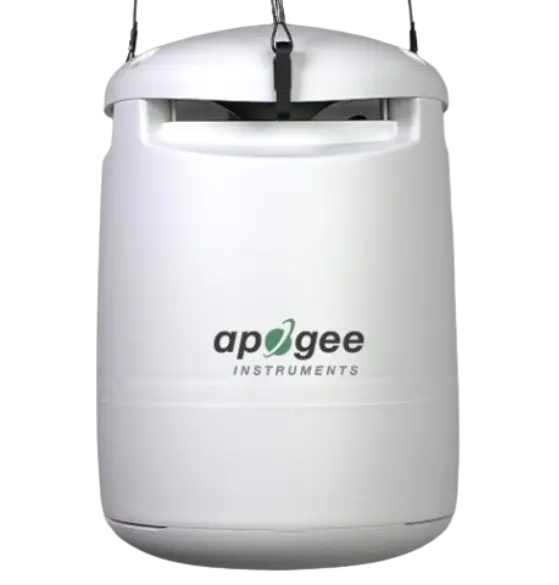

SM-600: ePAR Guardian CEA Multi-Sensor Monitor
Datalogger with multiple integrated sensors to measure ePAR, air temperature, humidity, vapor pressure deficit and dewpoint, CO2 concentration, barometric pressure, and daily light integral and photoperiod. The SM-600 sensor measures extended photosynthetically active radiation (ePAR), which includes far-red photons, while the SM-500 does not.
- Calibration Uncertainty: ± 5 %
- Measurement Range: 0 to 4000 µmol m-2 s-1
- Spectral Range: 383 to 757 nm
- Field of View: 180°
- Response Time: Less than 1 ms
- Temperature Response: -0.11 % ± 0.04 % per C
- Operating Environment: -40 to 60 C with 0 to 95 % relative humidity
- CO2: Range 0-2000; ± 50 ppm + 2 %
- Temperature: ± 0.2 C
- Humidity Range: 0-95 %; ± 3 % 20-80 %
- Vapor Pressure Deficit (25 C): ± 0.08 kPa
- Barometric Pressure: 70 to 110 kPa
- Connectivity: Modbus (RS232 and RS485) and Bluetooth
- Power Requirements: 5-32 V DC; Typical: 100 mA; Peak: 500 mA
- Data Storage Capacity: 9 months of 1 min data
- IP Rating: IP53 rating for harsh environments
- Dimensions: 105 mm diameter, 157 mm height
- Mass: 392 g
