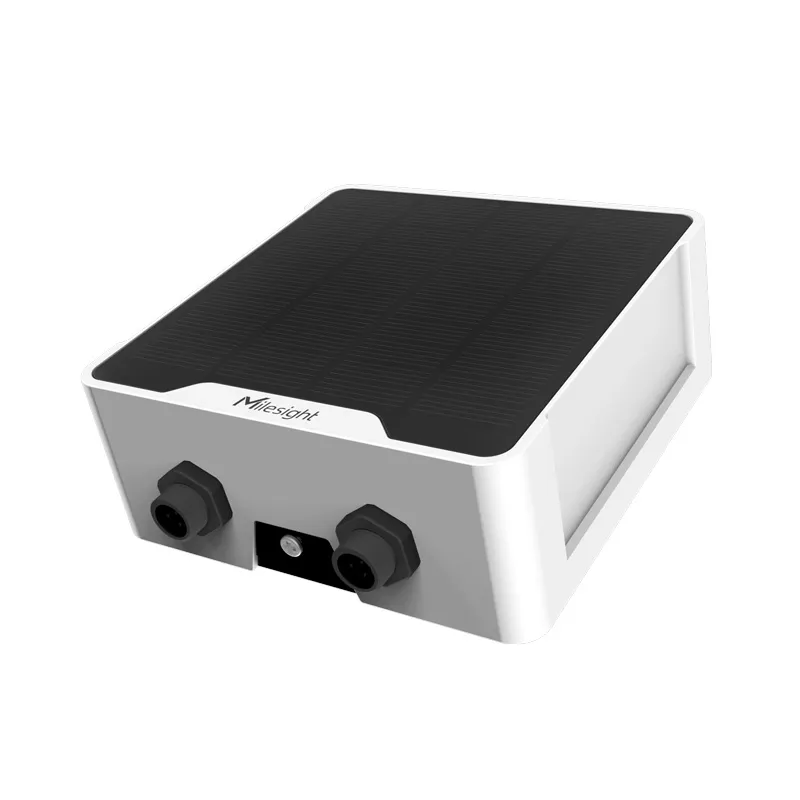

The Milesight UC511 is a professional-grade LoRaWAN® solenoid valve controller designed to automate irrigation systems and remotely control up to two DC latching solenoid valves. Featuring integrated water flow monitoring, a built-in solar panel, rechargeable batteries, and an IP67-rated enclosure, the UC511 delivers reliable, long-term operation in agricultural, greenhouse, landscaping, and remote irrigation applications.
The UC511 supports both time-based and flow-based irrigation strategies, while two configurable GPIO inputs allow connection to pulse water meters or valve status sensors for precise water usage tracking. Configuration is quick and simple using NFC and the Milesight Toolbox mobile app, eliminating the need to open the enclosure during installation.

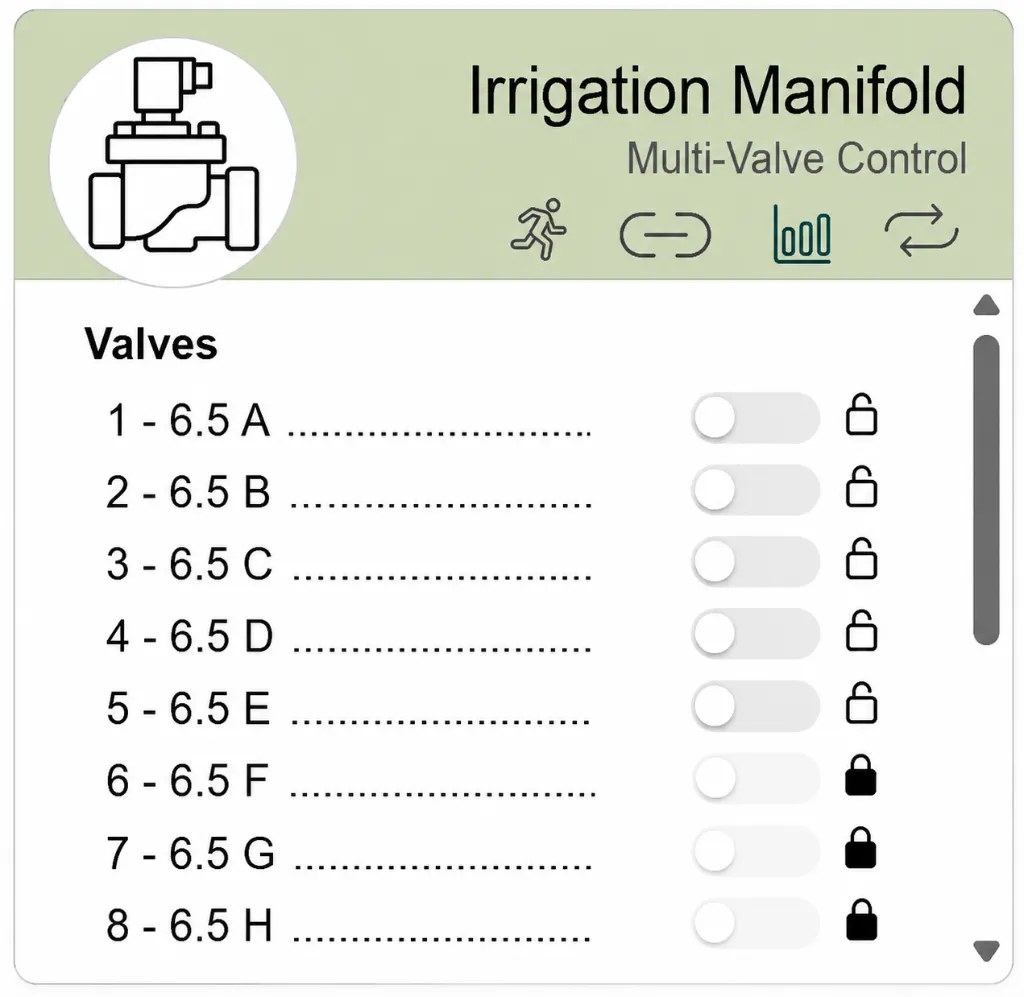

When integrated with Microclimates EnvOS®, the UC511 enables centralized irrigation management with real-time valve control, water flow monitoring, dashboards, historical reporting, alerts, and automation. Combine the UC511 with soil moisture sensors, weather stations, climate monitoring, and irrigation scheduling to create intelligent, water-efficient irrigation systems.
Key Features
-
Controls up to two DC latching solenoid valves
-
Two configurable GPIO inputs for water meters or valve status monitoring
-
Time-based and flow-based irrigation control
-
Long-range LoRaWAN® wireless communication
-
Integrated solar panel with rechargeable batteries for long-term autonomous operation
-
IP67-rated waterproof enclosure for outdoor installations
-
NFC configuration using the Milesight Toolbox mobile app
-
M12 industrial connectors for reliable field wiring
-
Supports remote OPEN/CLOSE commands and scheduled irrigation
-
Native integration with Microclimates EnvOS® for monitoring, irrigation automation, alerts, and reporting.
Typical Applications
-
Greenhouse irrigation
-
Nursery irrigation
-
Agricultural irrigation
-
Landscape irrigation
-
Orchard and vineyard irrigation
-
Remote valve control
-
Water flow monitoring
-
Smart irrigation systems
-
Water conservation projects
Specifications
-
Wireless: LoRaWAN® Class A, B & C
-
Valve Outputs: 2 × DC latching solenoid outputs (5V / 9V / 12V selectable)
-
GPIO Inputs: 2 × Digital Inputs / Pulse Counters
-
Flow Monitoring: Pulse water meter support
-
Communication Range: Up to 15 km line-of-sight
-
Power: Integrated 5V / 1.6W solar panel with 2 × 2550 mAh rechargeable batteries
-
Configuration: NFC or USB Type-C
-
Enclosure: IP67 waterproof
-
Operating Temperature: -20°C to +60°C
-
Mounting: Pole or wall mount
-
Frequency: US915 and other regional LoRaWAN® bands available.
