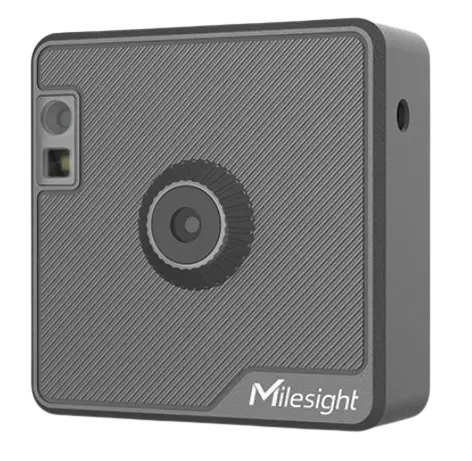

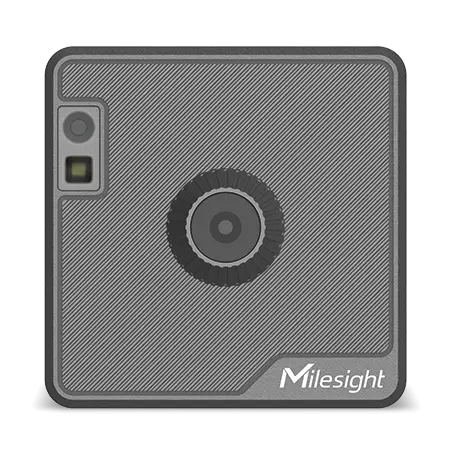

X1 Sensing Camera
- Inspire Sensing Insights through Images
- Easy-to-Get Wireless Deployment
- Long Service Life with Low Power Consumption
- Multi-Object Catching & Multi-Capturing Modes
- Compact Design & Powerful Camera Capacity
- Collaborate with AIoT Sensing Platform
- Well Compatible with the Third Party Platforms
Lens
- Resolution: 1920 x 1080 Pixels
- Aperture: F2.4
- Focal Length: 4.8mm
- Field of View: 77°
Picture Capture
- Capture Mode: Scheduled Capture(Interval & Timed)/Alarm-in Capture/Button Capture
- Picture Format: JPEG
- Storage: Store up to 40 pictures (About 3MB Flash)
Wireless Transmission
- Wi-Fi: IEEE 802.11 b/g/n,2.4GHz (AP & STA)
- Protocol: MQTT
Interface
- Type-C Interface: 1 x Type-C
- LED: 1 x Status(Blue)
- Button: 1 x External Button (Awake/Capture/Reset Device)
- Alarm-in Interface: Logical Level: Low: <0.5V, High: 3V ~ 5V
- Trigger Condition: High Level lasted over 150us
Physical Characteristics
- Power Supply: 1. 5V / 1A by Type-C Port
- 2. 2 x AA alkaline batteries
- Battery Life: Up to 2 Years (3 Captures per Day, Supplement Light Off, 25°C)
- Installation: Universal Camera Bracket Mounting
- Mounting Distance: 10 ~ 20 cm
- Operating Temperature: 0°C ~ +50°C
- Storage Temperature: -20°C ~ +60°C
- Relative Humidity: 0 ~ 95% (Non-condensing)
- Color & Material: Charcoal Grey, PC + ABS
- Ingress Protection: IP30
- Dimension: 62 x 62 x 25 mm
- Weight: 48g
