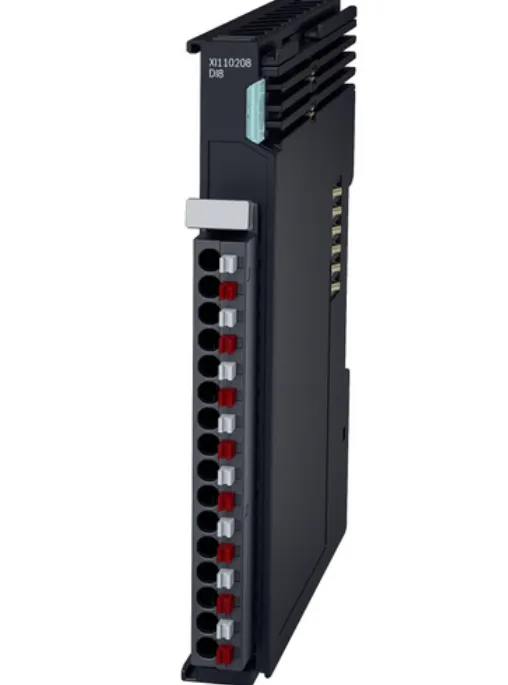

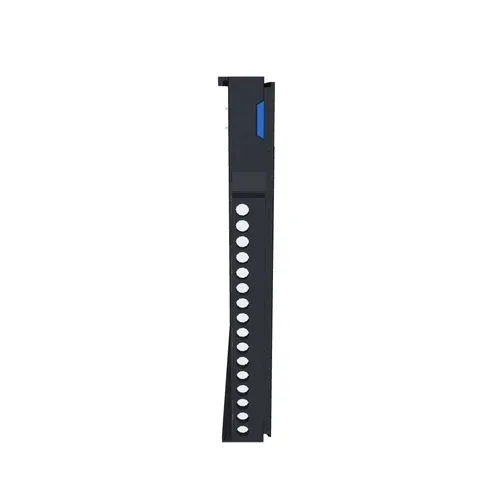

The XI110208 digital input terminal is used to acquire binary 24 V control signals in a ctrlX I/O station. The terminal has eight channels and uses a 2-wire connection. The signal status is indicated by the channel LED on the detachable peripheral connector.
The logic and peripheral power supply as well as the EtherCAT-based module communication are managed by the module.
General technical data:
- Number of inputs: 8
- Connection type: push-in terminal
- Connection technology: 2-wire technology
- Specification: EN 61131-2, Type 1/3
- Input filter: 3 ms
- Signal voltage "0": -3 V ... 5 V
- Signal voltage "1": 11 V ... 30 V
- Input current: Typically 2.4 mA
- Max. output current per terminal point UOUT 24 V: 1 A
- Max. total current UOUT 24 V: 2 A
- Nominal voltage (UL / UP): DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
- Current consumption UL: 30 mA
- Current consumption UP: 15 mA + output current UOUT
- Maximum power consumption of the module: 1.43 W
- Bit width in the process image: 1 byte (8 bits)
- Configuration: No address or configuration setting required
- Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
- Weight: 100 g (module including plug)
- Potential isolation: 1211 V DC UP to UL, 707 V DC UP/UL to FE (not evaluated by UL)
- EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
- Installation position: Vertical, on a horizontal mounting rail
- Marking, approvals: CE, UKCA, UL (⮫ File No. E210730)
