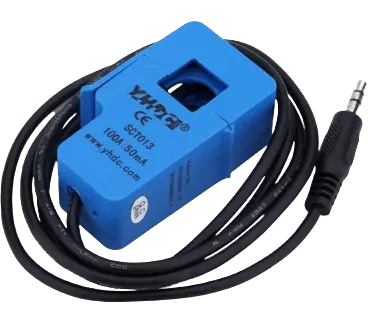

The YHDC SCT-013 0–100A open/close current transformer is a non-invasive split-core sensor designed for alternating current measurement in energy monitoring, industrial automation, and electrical load tracking applications. Integrated with Microclimates EnvOS®, it enables real-time current sensing, energy usage tracking, alerts, and historical reporting across distributed electrical systems. Its clamp-on design allows installation without circuit interruption, making it suitable for retrofit and live system monitoring.
Requires Converter - CS01-LB
Features
- Non-invasive split-core clamp design for easy installation
- Measures AC current up to 100A
- 13 mm × 13 mm opening for standard conductor sizes
- Current transformer output (SCT-013 series platform)
- Frequency range: 50 Hz – 150 kHz
- Accuracy up to ±1–3% depending on configuration
- Suitable for building energy monitoring, load measurement, & closed-loop control applications
- 1 m lead wire with 3.5 mm audio-style connector
- Sealed ferrite core construction for stable magnetic coupling

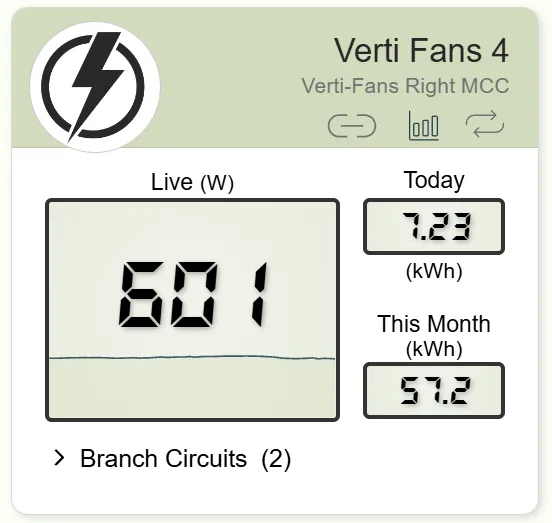

- Seamless integration with Microclimates EnvOS® for monitoring, reporting, and automation
